Graphite Series #2: Carbon & Whisper / by Franklin Angulo

In the Graphite Series blog posts, I'll provide a guide to help through all of the steps involved in setting up a monitoring and alerting system using a Graphite stack. Disclaimer: I am no expert, I am just trying to help the Graphite community by providing more detailed documentation. If there's something wrong, please comment below or drop me an email at feangulo@yaipan.com.


Graphite Back-end

Graphite is composed of multiple back-end and front-end components. The back-end components are used to store numeric time-series data. The front-end components are used to retrieve the metric data and optionally render graphs. In this blog post, I'll focus on the back-end components: Carbon and Whisper.

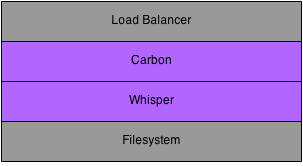

Metrics can be published to a load balancer or directly to a Carbon process. The Carbon process interacts with the Whisper database library to store the time-series data to the filesystem.

Install Carbon

Carbon is a daemon that listens for time-series data using an event-driven networking engine called Twisted. The Twisted framework permits Carbon processes to handle a large number of clients and handle a large amount of traffic with a low amount of overhead.

To install Carbon, run the following commands (assuming RHEL operation system):

# sudo yum groupinstall "Development Tools"
# sudo yum install python-devel
# sudo yum install git
# sudo easy_install pip
# sudo pip install twisted
# cd /tmp
# git clone https://github.com/graphite-project/carbon.git
# cd /tmp/carbon
# sudo python setup.py install

The /opt/graphite directory should now have the carbon libraries and configuration files:

# ls -l /opt/graphite
total 16
drwxr-xr-x. 2 root root 4096 May 18 23:56 bin
drwxr-xr-x. 2 root root 4096 May 18 23:56 conf
drwxr-xr-x. 4 root root 4096 May 18 23:56 lib
drwxr-xr-x. 6 root root 4096 May 18 23:56 storage

Install Whisper

Whisper is a database library for storing time-series data that is then retrieved and manipulated by applications using the create, update, and fetch operations.

To install Whisper, run the following commands:

# cd /tmp
# git clone https://github.com/graphite-project/whisper.git
# cd /tmp/whisper
# sudo python setup.py install

The Whisper scripts should now be in place:

# ls -l /usr/bin/whisper*
-rwxr-xr-x. 1 root root 1711 May 19 00:00 /usr/bin/whisper-create.py
-rwxr-xr-x. 1 root root 2902 May 19 00:00 /usr/bin/whisper-dump.py
-rwxr-xr-x. 1 root root 1779 May 19 00:00 /usr/bin/whisper-fetch.py
-rwxr-xr-x. 1 root root 1121 May 19 00:00 /usr/bin/whisper-info.py
-rwxr-xr-x. 1 root root  674 May 19 00:00 /usr/bin/whisper-merge.py
-rwxr-xr-x. 1 root root 5982 May 19 00:00 /usr/bin/whisper-resize.py
-rwxr-xr-x. 1 root root 1060 May 19 00:00 /usr/bin/whisper-set-aggregation-method.py
-rwxr-xr-x. 1 root root  969 May 19 00:00 /usr/bin/whisper-update.py

Start a Carbon Process

The Carbon installation comes with sensible defaults for port numbers and many other configuration parameters. Copy the existing example configuration files:

# cd /opt/graphite/conf
# cp aggregation-rules.conf.example aggregation-rules.conf
# cp blacklist.conf.example blacklist.conf
# cp carbon.conf.example carbon.conf
# cp carbon.amqp.conf.example carbon.amqp.conf
# cp relay-rules.conf.example relay-rules.conf
# cp rewrite-rules.conf.example rewrite-rules.conf
# cp storage-schemas.conf.example storage-schemas.conf
# cp storage-aggregation.conf.example storage-aggregation.conf
# cp whitelist.conf.example whitelist.conf
# vi carbon.conf

Under the cache section, the line receiver port should already be specified:

[cache]
LINE_RECEIVER_INTERFACE = 0.0.0.0
LINE_RECEIVER_PORT = 2003

Start a carbon-cache process by running the following command:

# cd /opt/graphite/bin
# ./carbon-cache.py start
Starting carbon-cache (instance a)

The process should now be listening on port 2003:

# ps -efla | grep carbon-cache
1 S root      2674     1  0  80   0 - 75916 ep_pol 00:18 ?        00:00:03 /usr/bin/python ./carbon-cache.py start

# netstat -nap | grep 2003
tcp        0      0 0.0.0.0:2003                0.0.0.0:*                   LISTEN      2674/python

Publish Metrics

A metric is any measurable quantity that can vary over time:

  • number of requests per second
  • request processing time
  • CPU usage

datapoint is a tuple containing:

  • a metric name
  • a measured value
  • at a specific point in time (usually a timestamp)

Client applications publish metrics by sending data points to a Carbon process. The application establishes a TCP connection on the Carbon process' port and sends data points in a simple plaintext format. In our example, the port is 2003. The TCP connection may remain open and reused as many times as necessary. The Carbon process listens for incoming data but does not send any response back to the client.

The datapoint format is defined as:

  • a single line of text per data point
  • a dotted metric name at position 0
  • a value at position 1
  • a Unix Epoch timestamp at position 2
  • spaces for the position separators

For example, here are some valid datapoints:

  • carbon.agents.graphite-tutorial.metricsReceived 28198 1400509108
  • carbon.agents.graphite-tutorial.creates 8 1400509110
  • PRODUCTION.host.graphite-tutorial.responseTime.p95 0.10 1400509112

Client applications have multiple ways to publish metrics:

  • using the plaintext protocol with tools such as the netcat (nc) command
  • using the pickle protocol
  • using the Advanced Message Queueing Protocol (AMQP)
  • using libraries such as the Coda Hale metrics library

For simplicity, in this tutorial I'll be using the plaintext protocol through the netcat command. To publish the example datapoints listed above, run the following commands:

sudo yum install nc
echo "carbon.agents.graphite-tutorial.metricsReceived 28198 `date +%s`" | nc localhost 2003
echo "carbon.agents.graphite-tutorial.creates 8 `date +%s`" | nc localhost 2003
echo "PRODUCTION.host.graphite-tutorial.responseTime.p95 0.10 `date +%s`" | nc localhost 2003

The carbon-cache log files will contain information about the new metrics received and where the information was stored:

# tail -f /opt/graphite/storage/log/carbon-cache/carbon-cache-a/creates.log
19/05/2014 10:42:44 :: creating database file /opt/graphite/storage/whisper/carbon/agents/graphite-tutorial/metricsReceived.wsp (archive=[(60, 129600)] xff=0.5 agg=average)
19/05/2014 10:42:53 :: creating database file /opt/graphite/storage/whisper/carbon/agents/graphite-tutorial/creates.wsp (archive=[(60, 129600)] xff=0.5 agg=average)
19/05/2014 10:42:57 :: creating database file /opt/graphite/storage/whisper/PRODUCTION/host/graphite-tutorial/responseTime/p95.wsp (archive=[(60, 1440)] xff=0.5 agg=average)

Carbon interacts with Whisper to store the time-series data to the filesystem. Navigate the filesystem to make sure the data files have been created:

# ls -l /opt/graphite/storage/whisper/carbon/agents/graphite-tutorial/
total 3040
-rw-r--r--. 1 root root 1555228 May 19 10:42 creates.wsp
-rw-r--r--. 1 root root 1555228 May 19 10:42 metricsReceived.wsp
# ls -l /opt/graphite/storage/whisper/PRODUCTION/host/graphite-tutorial/responseTime/
total 20
-rw-r--r--. 1 root root 17308 May 19 10:42 p95.wsp

Finally, you can retrieve metadata information about the Whisper file that was created for the metric using the whisper-info script:

# whisper-info.py /opt/graphite/storage/whisper/PRODUCTION/host/graphite-tutorial/responseTime/p95.wsp
maxRetention: 86400
xFilesFactor: 0.5
aggregationMethod: average
fileSize: 17308

Archive 0
retention: 86400
secondsPerPoint: 60
points: 1440
size: 17280
offset: 28

The whisper-dump script is a more complete script that outputs the original data for all storage retention periods along with the metadata information about the Whisper file:

# whisper-dump.py /opt/graphite/storage/whisper/PRODUCTION/host/graphite-tutorial/responseTime/p95.wsp
Meta data:
  aggregation method: average
  max retention: 86400
  xFilesFactor: 0.5

Archive 0 info:
  offset: 28
  seconds per point: 60
  points: 1440
  retention: 86400
  size: 17280

Archive 0 data:
0: 1400609220, 0.1000000000000000055511151231257827
1: 0,          0
2: 0,          0
3: 0,          0
4: 0,          0
5: 0,          0
...
1437: 0,          0
1438: 0,          0
1439: 0,          0

Aggregation method, max retention, xFilesFactor, and all of the other attributes of the Whisper file are important to understand. Don't worry if you're lost at this point, I'll be covering these in more detail in the next blog post.
